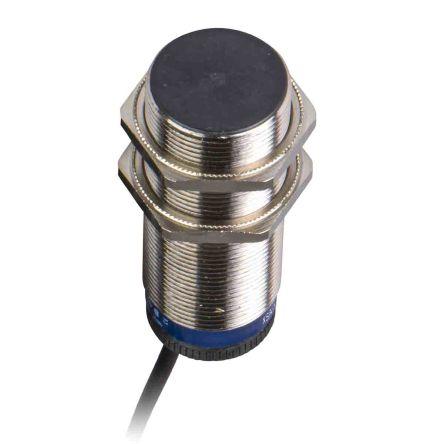

Telemecanique Sensors Ind Sensor Cyl 30mm NC PNP 12-48V 10m

RS Stock No: 1951887

Mfr Part No: XSAV11373L10

Brand: Telemecanique Sensors

Ind Sensor Cyl 30mm NC PNP 12-48V 10m
Unavailable
£189.32(exc. VAT)
£227.18(inc. VAT)
Buy from RS Online

Technical Reference

Technical Specifications

AttributeValue
Mounting TypeFlush
Thread SizeM30 x 1.5
Terminal Type2m Cable, 3-Wire
Housing MaterialPPS, Nickel Plated Brass
Body StyleCylindrical
Supply Voltage10 V to 58 V / 12 V to 48 V
Output TypePNP
Maximum Operating Temperature70
Sensor TechnologyInductive
Shielding
Minimum Operating Temperature-25
IP RatingIP67
Reverse Polarity ProtectionYes
ManufacturerTelemecanique Sensors
Shape
Series
Hazardous Area Certification
Standards/ApprovalsCSA, UL Certified, CE, CCC
BrandTelemecanique Sensors
Supply Voltage DC Max58 V
Application
Communication Interface
Sensing Distance10 mm
Transducer Frequency
Accessory Type
For Use With
Switching Frequency
Switching Current200 mA
Short Circuit Overload ProtectionYes
Length81.55
Switching Frequency Max0.1 kHz
Dimensions
Electrical Connection3-Wire, 2 m Cable
