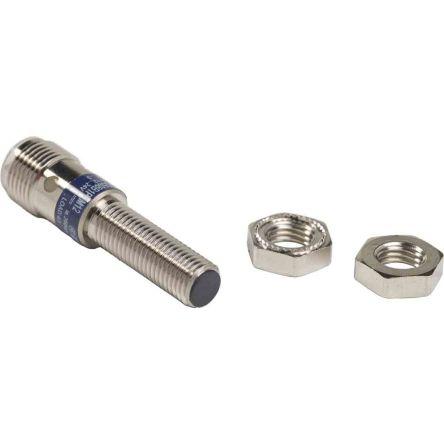

Ind Sensor Cyl 8mm NO PNP 12-24V M12

Technical Reference

Attribute	Value
Supply Voltage	10 to 36, 12 to 24
Output Type	PNP
Maximum Operating Temperature	70
Sensor Technology	Inductive
Shielding
IP Rating	IP67
Reverse Polarity Protection	Yes
Mounting Type	Flush
Thread Size	M12 x 1
Housing Material	PPS, Nickel Plated Brass
Body Style	Cylindrical
Manufacturer	Telemecanique Sensors
Series
Depth
Standards/Approvals	CSA, UL Certified, CE
Brand	Telemecanique Sensors
Communication Interface
Sensing Distance	1.5 mm
Switching Frequency
Switching Current	200
Short Circuit Overload Protection	Yes
Length	45
Dimensions
Electrical Connection	4-Pin, M12
