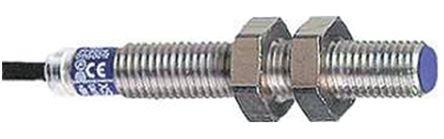

Inductive Prox Sensor 8mm NC PNP 2.5mm

Technical Reference

Attribute	Value
Supply Voltage	12 to 48
Output Type	NPN
Maximum Operating Temperature	70
Sensor Technology	Inductive
Shielding	Unshielded
IP Rating	IP67
Reverse Polarity Protection	Yes
Mounting Type	Flush
Thread Size	M8 x 1
Housing Material	Plastic
Body Style	Cylindrical
Manufacturer	Telemecanique Sensors
Series
Depth
Standards/Approvals
Brand	Telemecanique Sensors
Communication Interface
Sensing Distance	2.5 mm
Switching Frequency
Switching Current	200
Short Circuit Overload Protection	Yes
Length	51
Dimensions
Electrical Connection	4-Pin, M12
