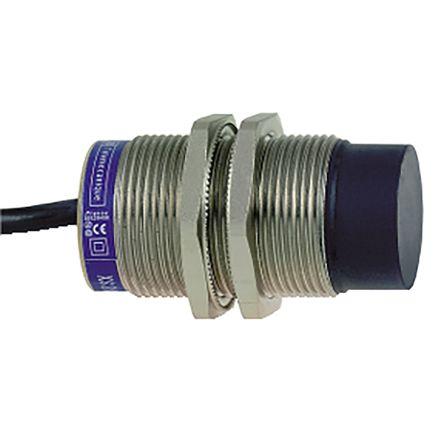

INDUCTIVE SENSOR CYLINDRICAL M30 12 48V

Technical Specifications

Attribute	Value
Mounting Type	Non-Flush
Thread Size	M30 x 1.5
Housing Material	PPS, Brass, Metal
Body Style	Cylindrical
Supply Voltage	12 to 48
Output Type	NPN
Maximum Operating Temperature	70
Sensor Technology	Inductive
Shielding
IP Rating	IP69K, IP68
Reverse Polarity Protection	Yes
Manufacturer	Telemecanique Sensors
Series
Depth
Standards/Approvals
Brand	Telemecanique Sensors
Communication Interface
Sensing Distance	22 mm
Switching Frequency
Switching Current	200
Short Circuit Overload Protection	Yes
Length	66.1
Dimensions
Electrical Connection	3-Wire, 2 m Cable
