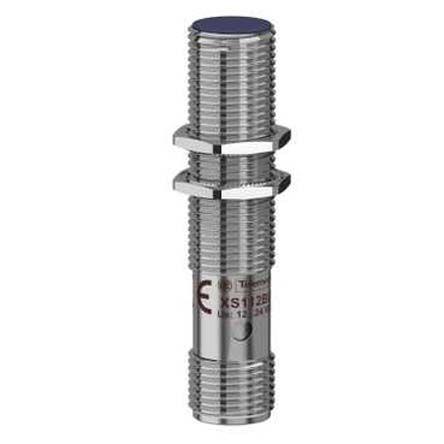

INDUCTIVE SENSOR M12 Sr 2mm

Technical Specifications

Attribute	Value
Supply Voltage	12 to 24
Output Type	PNP
Maximum Operating Temperature	70
Sensor Technology	Inductive
Shielding	Unshielded
IP Rating	IP65, IP67
Reverse Polarity Protection	Yes
Mounting Type	Flush
Thread Size	M12 x 1
Housing Material	Nickel Plated Brass
Body Style	Cylindrical
Manufacturer	Telemecanique Sensors
Series
Depth
Standards/Approvals	CSA, UL Certified, CE, IEC 60068-2-6, IEC 60529, IEC 60068-2-27
Brand	Telemecanique Sensors
Communication Interface
Sensing Distance	2 mm
Switching Frequency
Switching Current	200
Short Circuit Overload Protection	Yes
Length	55
Dimensions
Electrical Connection
