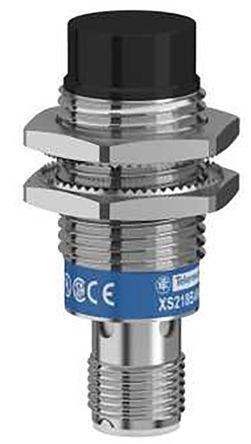

Inductive sensor M18 Sr 16mm

Technical Reference

Attribute	Value
Supply Voltage	12 to 24
Output Type	NPN
Maximum Operating Temperature	70
Sensor Technology	Inductive
Shielding	Unshielded
IP Rating	IP65, IP69K, IP67
Reverse Polarity Protection	Yes
Mounting Type	Non-Flush
Thread Size	M18 x 1
Housing Material	PPS, Nickel Plated Brass
Body Style	Cylindrical
Manufacturer	Telemecanique Sensors
Series
Depth
Standards/Approvals	CSA, UL Certified, CE, E2
Brand	Telemecanique Sensors
Communication Interface
Sensing Distance	16 mm
Switching Frequency
Switching Current	200
Short Circuit Overload Protection	Yes
Length	51
Dimensions
Electrical Connection
