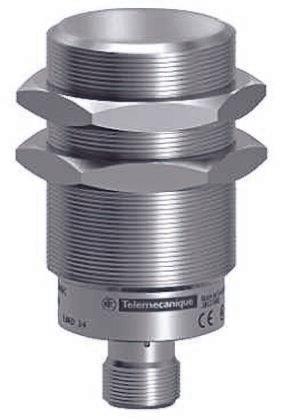

Inductive sensor, M30 Sr 40mm PNP M12 SS

Technical Reference

Attribute	Value
Mounting Type	Flush
Thread Size	M30 x 1.5
Housing Material	Stainless Steel
Body Style	Cylindrical
Supply Voltage	12 to 24
Output Type	PNP
Maximum Operating Temperature	70
Sensor Technology	Inductive
Shielding	Shielded
IP Rating	IP69K, IP68
Reverse Polarity Protection	Yes
Manufacturer	Telemecanique Sensors
Series
Depth
Standards/Approvals
Brand	Telemecanique Sensors
Communication Interface
Sensing Distance	20 mm
Switching Frequency
Switching Current	200
Short Circuit Overload Protection	Yes
Length	63.5
Dimensions
Electrical Connection	4-Pin, M12
