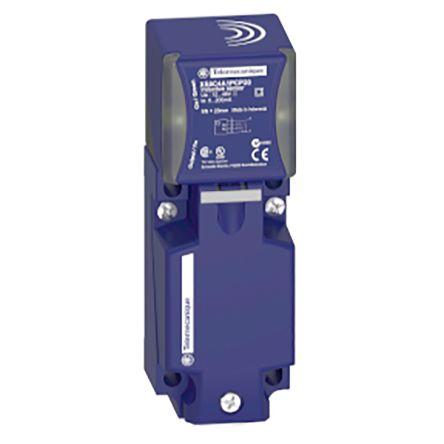

INDUCTIVE SENSOR RECT 40X40X117 12 48V D

Technical Reference

Attribute	Value
Mounting Type	Flush
Thread Size
Housing Material	PBT, Plastic
Body Style	Rectangular
Supply Voltage	12 to 48
Output Type	PNP
Maximum Operating Temperature	70
Sensor Technology	Inductive
Shielding
IP Rating	IP65, IP69K, IP67
Reverse Polarity Protection	Yes
Manufacturer	Telemecanique Sensors
Series
Depth	40
Standards/Approvals
Brand	Telemecanique Sensors
Communication Interface
Sensing Distance	20 mm
Switching Frequency
Switching Current	200
Short Circuit Overload Protection	Yes
Length	40
Dimensions	40 x 117 x 40
Electrical Connection	3-Wire, 2 m Cable
