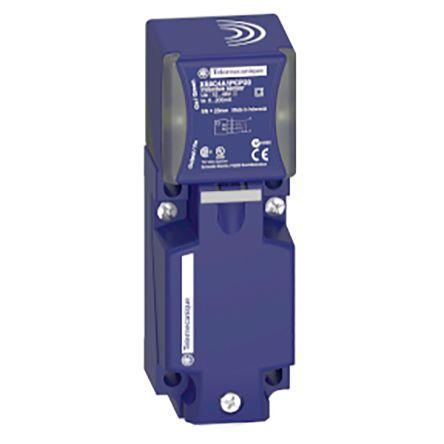

Telemecanique Sensors INDUCTIVE SENSOR RECT 40X40X117 12 48V D

RS Stock No: 1799942

Mfr Part No: XS8C4A4PCP20

Brand: Telemecanique Sensors

INDUCTIVE SENSOR RECT 40X40X117 12 48V D
Unavailable
£97.45(exc. VAT)
£116.94(inc. VAT)
Buy from RS Online

Technical Reference

Technical Specifications

AttributeValue
Supply Voltage12 V to 48 V
Output TypePNP
Maximum Operating Temperature70
Sensor TechnologyInductive
Shielding
Minimum Operating Temperature-25
IP RatingIP65, IP69K, IP67
Reverse Polarity ProtectionYes
Mounting TypeNon-flush
Thread Size
Terminal Type2m Cable, 3-Wire
Housing MaterialPBT, Plastic
Body StyleRectangular
ManufacturerTelemecanique Sensors
Shape
Series
Depth40
Hazardous Area Certification
Standards/Approvals
BrandTelemecanique Sensors
Supply Voltage DC Max48 V
Application
Communication Interface
Sensing Distance40 mm
Transducer Frequency
Accessory Type
For Use With
Switching Frequency
Switching Current200 mA
Short Circuit Overload ProtectionYes
Length40
Switching Frequency Max0.6 kHz
Dimensions40 x 117 x 40 mm
Width117
Electrical Connection3-Wire, 2 m Cable
