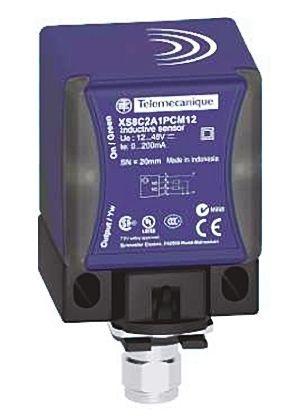

Inductive sensor, Sr 40mm, M12 conn

Technical Specifications

Attribute	Value
Supply Voltage	12 to 48
Output Type
Maximum Operating Temperature	70
Sensor Technology	Inductive
Shielding	Unshielded
IP Rating	IP65, IP69K, IP67
Reverse Polarity Protection	Yes
Mounting Type	Non-Flush
Thread Size
Housing Material	PBT
Body Style	Rectangular
Manufacturer	Telemecanique Sensors
Series
Depth	40
Standards/Approvals
Brand	Telemecanique Sensors
Communication Interface
Sensing Distance	40 mm
Switching Frequency
Switching Current	100
Short Circuit Overload Protection	Yes
Length	40
Dimensions	40 x 72.9 x 40
Electrical Connection	4-Pin, M12
