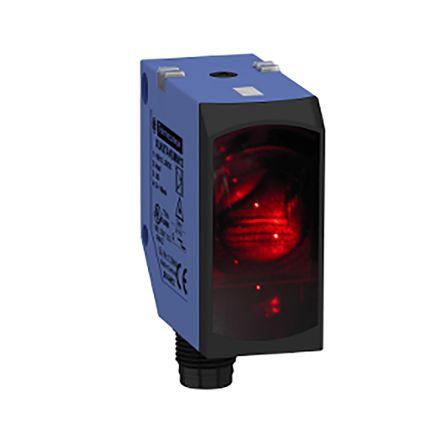

PHOTO ELECTRIC SENSOR TOF DIFFUSE SN 5M

Technical Reference

Attribute	Value
Output Type	NPN/PNP
Maximum Operating Temperature	+60
Maximum DC Voltage	30
Minimum Operating Temperature	-40
IP Rating	IP69K, IP67
Detection Range	5000
Mounting Type
Thread Size
Terminal Type	M12 Connector
Housing Material	ABS, PC
Body Style	Compact Rectangular
Standards Met	Ecolab Certificate, cULus Certificate, IEC 60068-2-6, CE Certified, IEC 60529, IEC 60068-2-27, DIN 40050
Manufacturer	Telemecanique Sensors
Optical Technology
Detection Type	Retro Reflective
Series	XUK
Sensor Type	Compact
Light Source	Laser Light
Maximum Current	60
Hazardous Area Certification
Switching Mode
Brand	Telemecanique Sensors
Communication Interface
Response Time	2
Electrical Connection	M12 Connector
