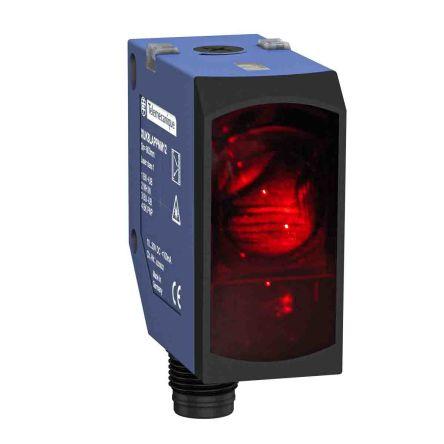

Photo Sensor Diffuse BGS 1NC/1NO PNP

Technical Reference

Attribute	Value
Output Type	PNP NO-NC
Maximum Operating Temperature	+60
Maximum DC Voltage	36
Minimum Operating Temperature	-20
IP Rating	IP69K, IP67
Detection Range	1200
Mounting Type	Threaded
Thread Size
Terminal Type	M12 4-Pin Connector
Housing Material	ABS, PC
Body Style	Compact Rectangular
Standards Met
Manufacturer	Telemecanique Sensors
Optical Technology
Detection Type	Diffuse
Series	XUK
Sensor Type	Compact
Light Source	Infrared LED
Maximum Current	100
Hazardous Area Certification
Switching Mode
Brand	Telemecanique Sensors
Communication Interface
Response Time	0.8
Electrical Connection	M12 4 Pin Connector
