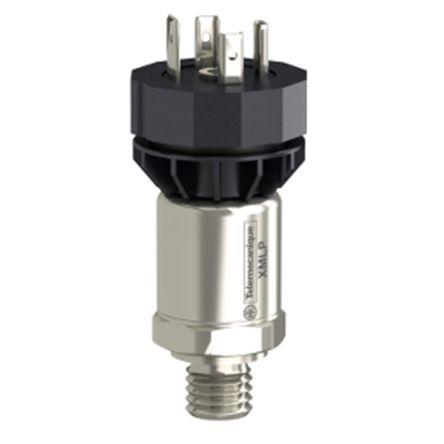

Telemecanique Sensors PRES TRANS 100BAR 0,5-4,5V DC

RS Stock No: 1767888

Mfr Part No: XMLP100BC11F

Brand: Telemecanique Sensors

PRES TRANS 100BAR 0,5-4,5V DC
Out of stock
£133.47(exc. VAT)
£160.16(inc. VAT)
Add to RS basket
1

Technical Assets

Technical Specifications

AttributeValue
Supply Voltage5 V dc
Output Type0.5-4.5 V
Maximum Operating Temperature+85 °C
Minimum Operating Temperature-30 °C
IP RatingIP65
Mounting TypeThread Mount
Housing MaterialFPM, Stainless Steel 316L
ManufacturerTelemecanique Sensors
Series
Media MonitoredRefrigeration Fluid, Hydraulic Oil, Gas, Fresh Water, Air
Maximum Pressure Reading100 bar
BrandTelemecanique Sensors
Accuracy %±0.5%
Communication Interface
Response Time2 ms
Process ConnectionG 1/4A
Pressure Type
Maximum Switching Current7 mA
Pressure Reading Min0 bar
Electrical Connection3-Pin EN 175301-803-A Male Connector
