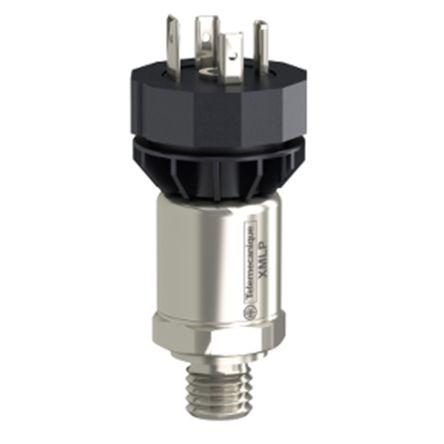

Telemecanique Sensors PRES TRANS 160BAR 4-20MA G1 4A

RS Stock No: 1767900

Mfr Part No: XMLP160BC21F

Brand: Telemecanique Sensors

PRES TRANS 160BAR 4-20MA G1 4A
Unavailable
£65.81(exc. VAT)
£78.97(inc. VAT)
Add to RS basket
1

Technical Specifications

AttributeValue
Supply Voltage12 V dc-24 V dc
Output Type4-20 mA
Maximum Operating Temperature+85 °C
Minimum Operating Temperature-30 °C
IP RatingIP65
Mounting TypeThread Mount
Housing MaterialFPM, Stainless Steel 316L
ManufacturerTelemecanique Sensors
Series
Media MonitoredRefrigeration Fluid, Hydraulic Oil, Gas, Fresh Water, Air
Maximum Pressure Reading160 bar
BrandTelemecanique Sensors
Accuracy %±0.5%
Communication Interface
Response Time2 ms
Process ConnectionG 1/4A
Pressure Type
Maximum Switching Current23 mA
Pressure Reading Min0 bar
Electrical Connection3-Pin EN 175301-803-A Male Connector
