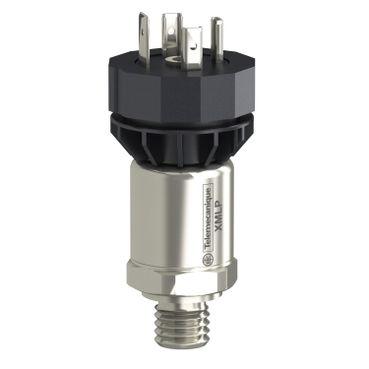

Telemecanique Sensors PRESS SWITCH 2,5 BAR 0-10V G1/4A

RS Stock No: 1462933

Mfr Part No: XMLP2D5GC71F

Brand: Telemecanique Sensors

PRESS SWITCH 2,5 BAR 0-10V G1/4A
Out of stock
£166.81(exc. VAT)
£200.17(inc. VAT)
Buy from RS Online

Technical Specifications

AttributeValue
Supply Voltage24 V dc
Output Type0-10 V
Maximum Operating Temperature+85 °C
Minimum Operating Temperature-30 °C
IP RatingIP65
Mounting TypeCable Mount
Housing MaterialFPM, Ceramic, Stainless Steel 316L
ManufacturerTelemecanique Sensors
Series
Media MonitoredHydraulic Oil, Gas, Fresh Water, Air
Maximum Pressure Reading2.5 bar
BrandTelemecanique Sensors
Accuracy %0.001
Communication Interface
Response Time2 ms
Process ConnectionG 1/4A
Pressure TypeDifferential
Maximum Switching Current7 mA
Pressure Reading Min0 bar
Electrical Connection3-Pin DIN 43650 Male Connector
