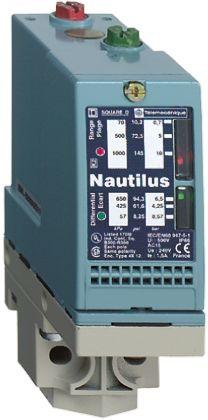

PRESSUR SWITCH, XMLBM05A2S11

Technical Reference

Attribute	Value
Supply Voltage	120 V dc-250 V dc
Output Type	1 C/O
Maximum Operating Temperature	+70 °C
Minimum Operating Temperature	-25 °C
IP Rating	IP66
Mounting Type
Housing Material	Zinc Alloy
Manufacturer	Telemecanique Sensors
Series
Media Monitored	Sea Water, Hydraulic Fluid, Fresh Water, Air
Maximum Pressure Reading	5 bar
Brand	Telemecanique Sensors
Accuracy %	0.02
Communication Interface
Response Time
Process Connection	G 1/4
Pressure Type	Differential
Maximum Switching Current	100 mA
Pressure Reading Min	-0.5 bar
Electrical Connection	PG13.5 Cable Gland
