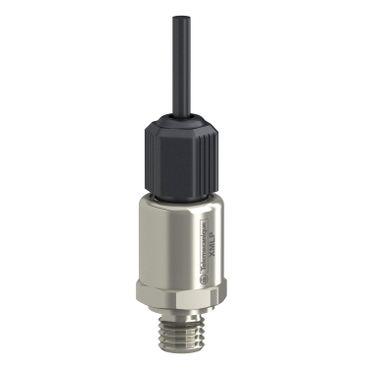

PRESSURE SWITCH 1 BAR 0-10V G1/4A

Technical Reference

Attribute	Value
Supply Voltage	24 V dc
Output Type	0-10 V
Maximum Operating Temperature	+85 °C
Minimum Operating Temperature	-30 °C
IP Rating	IP65
Mounting Type	Cable Mount
Housing Material	FPM, Ceramic, Stainless Steel 316L
Manufacturer	Telemecanique Sensors
Series
Media Monitored	Hydraulic Oil, Gas, Fresh Water, Air
Maximum Pressure Reading	0 bar
Brand	Telemecanique Sensors
Accuracy %	0.001
Communication Interface
Response Time	2 ms
Process Connection	G 1/4A
Pressure Type	Differential
Maximum Switching Current	7 mA
Pressure Reading Min	-1 bar
Electrical Connection	Cable
