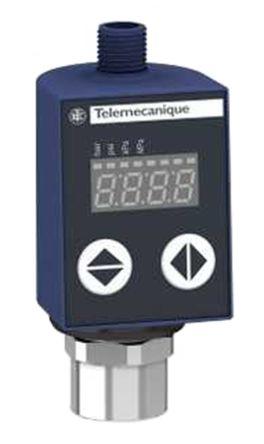

PRESSURE SWITCH 10 BAR

Technical Specifications

Attribute	Value
Mounting Type
Housing Material	Stainless Steel, Polyacrylamide
Supply Voltage	24 V dc
Output Type	4-20 mA
Maximum Operating Temperature	+80 °C
Minimum Operating Temperature	-20 °C
IP Rating	IP65, IP67
Manufacturer	Telemecanique Sensors
Series
Media Monitored	Refrigeration Fluid, Hydraulic Oil, Fresh Water, Air
Maximum Pressure Reading	10 bar
Brand	Telemecanique Sensors
Accuracy %	0.001
Communication Interface
Response Time	10 ms
Process Connection	G 1/4
Pressure Type	Differential
Maximum Switching Current	50 mA
Pressure Reading Min	0 bar
Electrical Connection	M12 Connector
