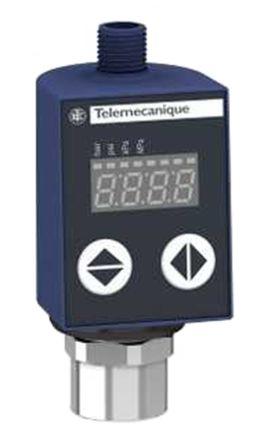

Telemecanique Sensors PRESSURE SWITCH 40 BAR

RS Stock No: 8352857

Mfr Part No: XMLR040G2P05

Brand: Telemecanique Sensors

PRESSURE SWITCH 40 BAR
In stock - 1
£366.90(exc. VAT)
£440.28(inc. VAT)
Add to RS basket
1

Technical Assets

Technical Specifications

AttributeValue
Mounting Type
Housing MaterialStainless Steel, Polyacrylamide
Supply Voltage24 V dc
Output Type2 NO/NC
Maximum Operating Temperature+80 °C
Minimum Operating Temperature-20 °C
IP RatingIP65, IP67
ManufacturerTelemecanique Sensors
Series
Media MonitoredRefrigeration Fluid, Hydraulic Oil, Fresh Water, Air
Maximum Pressure Reading40 bar
BrandTelemecanique Sensors
Accuracy %0.001
Communication Interface
Response Time5 ms
Process ConnectionG 1/4
Pressure TypeDifferential
Maximum Switching Current50 mA
Pressure Reading Min0 bar
Electrical ConnectionM12 Connector
