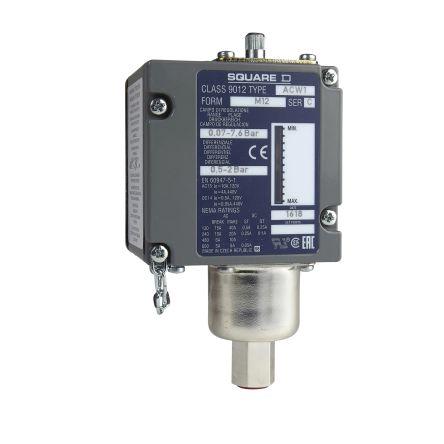

Telemecanique Sensors Pressure Switch ACW 7.6 BAR ADJ S

RS Stock No: 1369408

Mfr Part No: ACW1M129012

Brand: Telemecanique Sensors

Pressure Switch ACW 7.6 BAR ADJ S
Out of stock
£213.29(exc. VAT)
£255.95(inc. VAT)
Buy from RS Online

Technical Specifications

AttributeValue
Mounting TypeCable Mount
Housing MaterialZinc Alloy
Supply Voltage500 V dc-600 V dc
Output Type1 C/O
Maximum Operating Temperature+85 °C
Minimum Operating Temperature-56 °C
IP RatingIP65
ManufacturerTelemecanique Sensors
Series
Media MonitoredHydraulic Oil, Air, Non-Corrosive Fluid
Maximum Pressure Reading7.6 bar
BrandTelemecanique Sensors
Accuracy %
Communication Interface
Response Time
Process ConnectionG 1/4A
Pressure TypeDifferential adjustable
Maximum Switching Current5000 mA
Pressure Reading Min0.07 bar
Electrical ConnectionM20 x 1.5 mm Cable Gland
