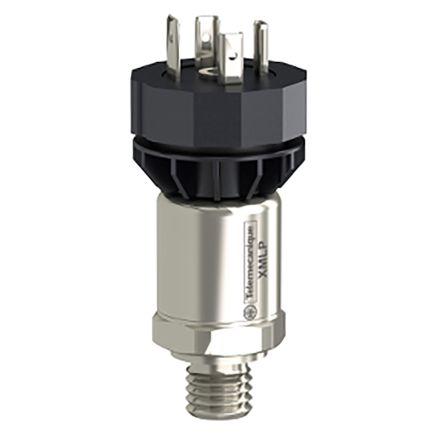

Telemecanique Sensors PRESSURE TRANSMITTER 6 BAR 4-20MA G1/4A

RS Stock No: 1778880

Mfr Part No: XMLP006GC21F

Brand: Telemecanique Sensors

PRESSURE TRANSMITTER 6 BAR 4-20MA G1/4A
Out of stock
£132.51(exc. VAT)
£159.01(inc. VAT)
Add to RS basket
1

Technical Assets

Technical Specifications

AttributeValue
Supply Voltage12 V dc-24 V dc
Output Type4-20 mA
Maximum Operating Temperature+85 °C
Minimum Operating Temperature-30 °C
IP RatingIP65
Mounting TypeThread Mount
Housing MaterialStainless Steel AISI 316L, Fluorocarbon FPM, Ceramic
ManufacturerTelemecanique Sensors
Series
Media MonitoredHydraulic Oil, Gas, Fresh Water, Air
Maximum Pressure Reading6 bar
BrandTelemecanique Sensors
Accuracy %±0.5%
Communication Interface
Response Time2 ms
Process ConnectionG 1/4A
Pressure Type
Maximum Switching Current23 mA
Pressure Reading Min0 bar
Electrical Connection3-Pin Male Connector
