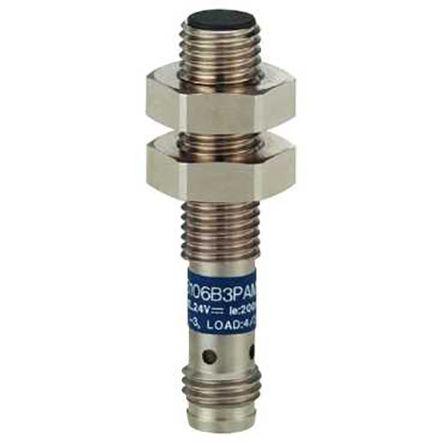

PROXIMITY SENSOR 8MM DC NPN XS5

Technical Reference

Attribute	Value
Supply Voltage	10 to 36
Output Type	NPN
Maximum Operating Temperature	70
Sensor Technology	Inductive
Shielding	Unshielded
IP Rating	IP67
Reverse Polarity Protection
Mounting Type	Flush
Thread Size	M8 x 1
Housing Material
Body Style	Cylindrical
Manufacturer	Telemecanique Sensors
Series
Depth
Standards/Approvals
Brand	Telemecanique Sensors
Communication Interface
Sensing Distance	1.5 mm
Switching Frequency
Switching Current	200
Short Circuit Overload Protection	Yes
Length	51
Dimensions
Electrical Connection	4-Pin, M12

Discover products which meet the same requirements in terms of sensing technology, protection level, detection range and key electrical properties.
