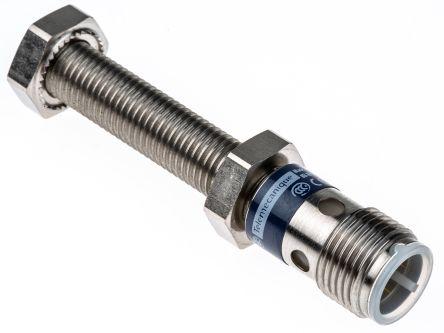

Sensor, Inductive M08 2.5mm, PNP NC, M12

Technical Reference

Attribute	Value
Mounting Type	Flush
Thread Size	M8 x 1
Housing Material	Stainless Steel
Body Style	Cylindrical
Supply Voltage	12 to 48
Output Type	PNP
Maximum Operating Temperature	70
Sensor Technology	Inductive
Shielding
IP Rating	IP65, IP67
Reverse Polarity Protection	Yes
Manufacturer	Telemecanique Sensors
Series
Depth
Standards/Approvals
Brand	Telemecanique Sensors
Communication Interface
Sensing Distance	2.5 mm
Switching Frequency
Switching Current	200
Short Circuit Overload Protection	Yes
Length	62
Dimensions
Electrical Connection	4-Pin, M12
