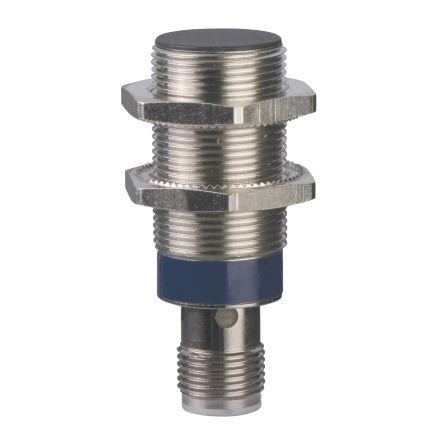

Sensor, Inductive M18 5mm, PNP NC, M12

Technical Reference

Attribute	Value
Mounting Type	Flush
Thread Size	M18 x 1
Housing Material	Nickel Plated Brass
Body Style	Cylindrical
Supply Voltage	10 to 36
Output Type	PNP
Maximum Operating Temperature	70
Sensor Technology	Inductive
Shielding
IP Rating	IP69K
Reverse Polarity Protection	Yes
Manufacturer	Telemecanique Sensors
Series
Depth
Standards/Approvals
Brand	Telemecanique Sensors
Communication Interface
Sensing Distance	5 mm
Switching Frequency
Switching Current	200
Short Circuit Overload Protection	Yes
Length	50
Dimensions
Electrical Connection	4-Pin, M12
