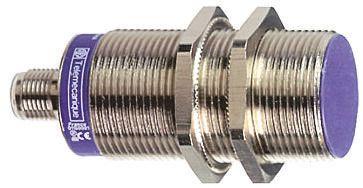

Telemecanique Sensors Sensor, Inductive M30 15mm, PNP NC, 2m

RS Stock No: 6956785

Mfr Part No: XS630B1PBL2

Brand: Telemecanique Sensors

Sensor, Inductive M30 15mm, PNP NC, 2m
Unavailable
£77.39(exc. VAT)
£92.87(inc. VAT)
Buy from RS Online

Technical Reference

Technical Specifications

AttributeValue
Supply Voltage12 V to 48 V
Output TypePNP
Maximum Operating Temperature70
Sensor TechnologyInductive
Shielding
Minimum Operating Temperature-25
IP RatingIP69K
Reverse Polarity ProtectionYes
Mounting TypeFlush
Thread SizeM30 x 1.5
Terminal TypeCable
Housing MaterialNickel Plated Brass
Body StyleCylindrical
ManufacturerTelemecanique Sensors
Shape
Series
Hazardous Area Certification
Standards/Approvals
BrandTelemecanique Sensors
Supply Voltage DC Max58 V
Application
Communication Interface
Sensing Distance15 mm
Transducer Frequency
Accessory Type
For Use With
Switching Frequency
Switching Current200 mA
Short Circuit Overload ProtectionYes
Length62
Switching Frequency Max0.5 kHz
Dimensions
Electrical ConnectionCable
