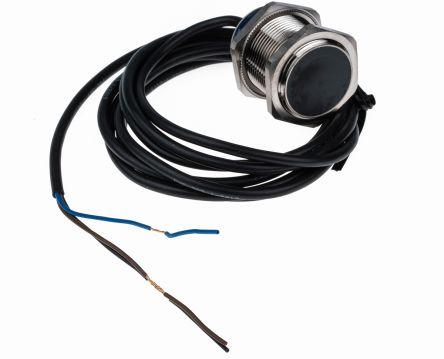

Sensor, Inductive M30 15mm, PNP NO, 2m

Technical Reference

Attribute	Value
Supply Voltage	10 to 36
Output Type	PNP
Maximum Operating Temperature	70
Sensor Technology	Inductive
Shielding
IP Rating	IP69K
Reverse Polarity Protection	Yes
Mounting Type	Flush
Thread Size	M30 x 1.5
Housing Material	Nickel Plated Brass
Body Style	Cylindrical
Manufacturer	Telemecanique Sensors
Series	OsiSense XS
Depth
Standards/Approvals
Brand	Telemecanique Sensors
Communication Interface
Sensing Distance	15 mm
Switching Frequency
Switching Current	200
Short Circuit Overload Protection	Yes
Length	43
Dimensions
Electrical Connection
