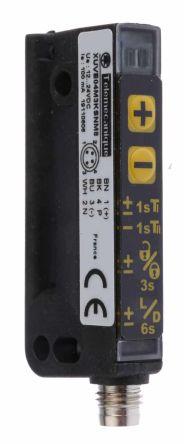

Sensor, infared slim label fork PNP/NPN

Technical Reference

Attribute	Value
Mounting Type
Thread Size
Terminal Type	M8 4-Pin Connector
Housing Material	Thermoplastic
Body Style	Fork
Standards Met
Output Type	NPN/PNP
Maximum Operating Temperature	+60
Maximum DC Voltage	24
Minimum Operating Temperature	-20
IP Rating	IP65
Detection Range	3
Manufacturer	Telemecanique Sensors
Optical Technology	Phototransistor
Detection Type	Through Beam
Series
Sensor Type	Fork
Light Source	Infrared LED
Maximum Current	100
Hazardous Area Certification
Switching Mode
Brand	Telemecanique Sensors
Communication Interface
Response Time	0.05
Electrical Connection	M8 4 Pin Connector
