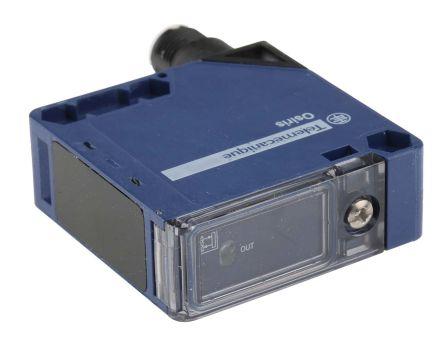

Sensor, Photoelectric Reflex 7M, PNP NO

Technical Reference

Attribute	Value
Output Type	PNP
Maximum Operating Temperature	+55
Maximum DC Voltage	24
Minimum Operating Temperature	-25
IP Rating	IP65
Detection Range	7000
Standards Met
Mounting Type
Thread Size
Terminal Type	M12 4-Pin Connector
Housing Material	PBT
Body Style	Rectangular
Manufacturer	Telemecanique Sensors
Optical Technology	Phototransistor
Detection Type	Retro Reflective
Series
Sensor Type	Compact
Light Source	Infrared LED
Maximum Current	100
Hazardous Area Certification
Switching Mode
Brand	Telemecanique Sensors
Communication Interface
Response Time	2
Electrical Connection	M12 4 Pin Connector
