Square D Pressure Switch, 0.2bar Min, 10.3bar Max, SPDT-NO/NC Output, Differential Reading

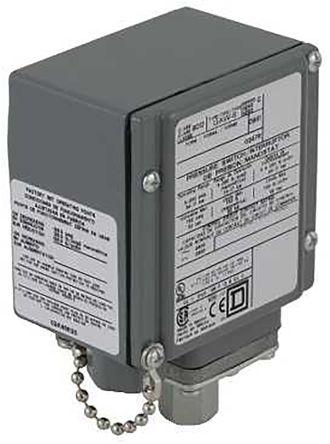

Telemecanique Sensors Square D Pressure Switch, 0.2bar Min, 10.3bar Max, SPDT-NO/NC Output, Differential Reading 9012GAW5

1 in stock
£282.19(exc. VAT)
£338.63(inc. VAT)

Mfr part no: 9012GAW5

RS Stock No.: 1242120

Brand: Telemecanique Sensors

rs components
Buy from UK.RS-ONLINE.COM(Exact stock levels may differ)

Technical Specifications

AttributeValue
Supply Voltage240 V ac/250 V dc
Output Type1 C/O
Maximum Operating Temperature29.4 °C
Minimum Operating Temperature-12.22 °C
IP Rating
Mounting TypeCable Mount
Housing MaterialDie Cast Aluminium Alloy 380
ManufacturerTelemecanique Sensors
Series
Media MonitoredNon-Corrosive Liquids, Hydraulic Oil, Air, Non-Corrosive Gas
Maximum Pressure Reading10.342 bar
Hazardous Area Certification
Calibrated
BrandTelemecanique Sensors
Accuracy %0.04
Communication Interface
Response Time
Process ConnectionG 1/4
Pressure TypeDifferential
For Use With
Maximum Switching Current6000 mA
Pressure Reading Min0.206843 bar
Electrical Connection1/2 in NPT
