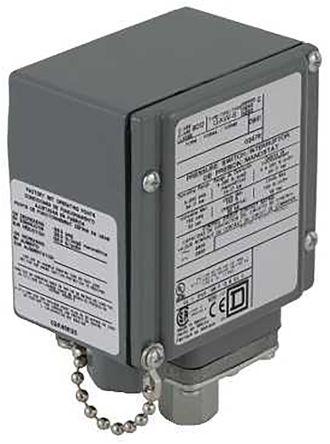

Square D Pressure Switch, 1.5 (Decreasing) psi, 3.5 (Differential) psi Min, 15 (Differential) psi, 7.5 (Decreasing) psi

Technical Reference

Attribute	Value
Supply Voltage	240 V ac/250 V dc
Output Type	1 C/O
Maximum Operating Temperature	85 °C
Minimum Operating Temperature	-12.22 °C
IP Rating
Mounting Type	Cable Mount
Housing Material	Die Cast Aluminium Alloy 380
Manufacturer	Telemecanique Sensors
Series
Media Monitored	Non-Corrosive Liquids, Hydraulic Oil, Air, Non-Corrosive Gas
Maximum Pressure Reading	1.034 bar
Brand	Telemecanique Sensors
Accuracy %	0.04
Communication Interface
Response Time
Process Connection	G 1/4
Pressure Type	Differential
Maximum Switching Current	6000 mA
Pressure Reading Min	0.103421 bar
Electrical Connection	1/2 in NPT
