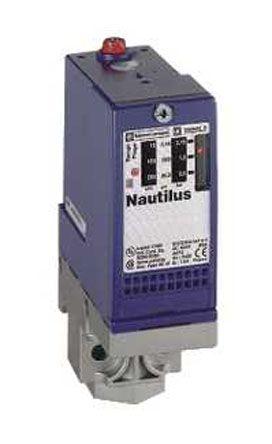

Telemecanique Sensors Pressure Switch, 0bar Min, 35bar Max, 1CO Output

Technical Reference

Attribute	Value
Supply Voltage	240 V ac/250 V dc
Output Type	1 C/O
Maximum Operating Temperature	+158 °C
Minimum Operating Temperature	-13 °C
IP Rating	IP65, IP66
Mounting Type	Panel Mount
Housing Material	Zinc Alloy
Manufacturer	Telemecanique Sensors
Series
Media Monitored	Sea Water, Hydraulic Oil, Fresh Water, Air
Maximum Pressure Reading	35 bar
Brand	Telemecanique Sensors
Accuracy %	0.02
Communication Interface
Response Time
Process Connection	G 1/4
Pressure Type	Differential fixed
Maximum Switching Current	100 mA
Pressure Reading Min	0 bar
Electrical Connection	PG13.5 Cable Gland
