Please note: Some technical details are unavailable for this product

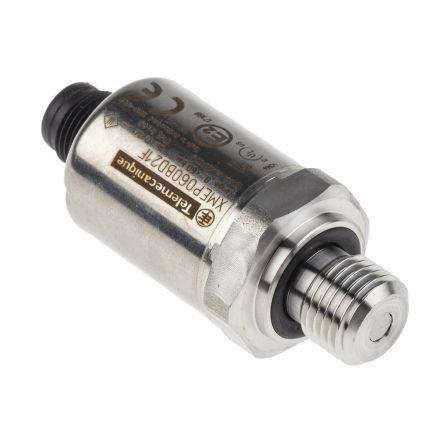

Telemecanique Sensors XMEP Series Pressure Sensor, 0bar Min, 60bar Max, Analogue Output

Telemecanique Sensors Telemecanique Sensors XMEP Series Pressure Sensor, 0bar Min, 60bar Max, Analogue Output XMEP060BD21F

0 in stock
£196.82(exc. VAT)
£236.18(inc. VAT)

Mfr part no: XMEP060BD21F

RS Stock No.: 1778859

Brand: Telemecanique Sensors

rs components
Buy from UK.RS-ONLINE.COM(Exact stock levels may differ)

Technical Specifications

AttributeValue
Supply Voltage12 V dc - 24 V dc
Output Type4 - 20 mA
Maximum Operating Temperature100 °C
Minimum Operating Temperature-40 °C
IP RatingIP65, IP69K, IP67
Mounting TypeThread Mount
Housing MaterialStainless Steel AISI 316L, Fluorocarbon FPM
ManufacturerTelemecanique Sensors
SeriesXMEP
Media MonitoredHydraulic Oil, Fresh Water, Air
Maximum Pressure Reading60 bar
Hazardous Area Certification
Calibrated
BrandTelemecanique Sensors
Accuracy %±0.5%
Communication Interface
Response Time2 ms
Process ConnectionG 1/4
Pressure Type
For Use With
Maximum Switching Current23 mA
Pressure Reading Min0 bar
Electrical Connection4-Pin M12 Male Connector
